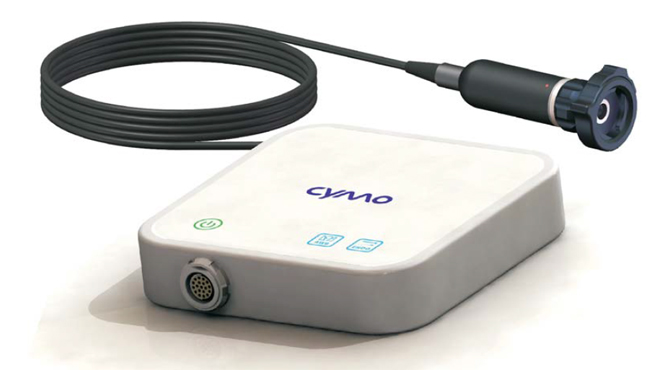

The Endoscopy camera 1150 is a low –cost ultra-high sensitive endoscopy camera. With the latest CCD technology, the 1150 camera provides two times higher sensitivity compared to conventional CCD cameras. This substantially reduces the requirements to the light source. The camera Incorporates a 10bit digital images processor which offers superior colour rendition and high Dynamic range. The excellent price-benefit ratio makes the 1150 an ideal camera for portable Endoscopy use.
The full 10-bit digital images processing provides a high dynamic image and excellent colour rendition.
Automatic white balance via a push button, current settings stored in a memory.
The camera offers five user settings to optimize the illumination condition for different endoscopes.
The digital anti-moire funcation can reduce the moiré effects when using the camera with a fiber endoscope.
1150 camera equips a simple on-screen display (OSD), and thus gives the user feedback during camera adjustment.
The 1150 camera head is waterproof, thus the camera is suitable for liquid clearning.
Two control buttons on the panel of the control unit optimally reduce the complexity of use. With the backlight of control buttons, the control function can be easily accessible even in a very dark room, for instance, an operation room.
| ProgrammeTechnical | Technical Data |
|---|---|
| Video system | PAL / NTSC |
| Image Sensor | 1/3” Interline CCD-chip 752(H) x 582 (V) pixels (Pal) 768 (H) x 494 (V) pixels (NTSC) |
| Scanning area | 1/3” |
| Horizontal resolution | 470 TV-lines |
| Minimum illumination | 0.1 lux (F1.4) |
| Shutter speed | Fix : Fully shutter OFF Auto: 1/50s to 1/100000s (PAL) 1/60s to 1/100000s (NTSC) |
| Signal – to-noise ratio | >50dB |
| White Balance | AUTO (Pushbutton) |
| Gain | AUTO / OFF |
| User mode | For 5 Users |
| Video Outputs | 1xcomposite (BNC) 1xY/C (S-VHS) |
| Environment | +10°C - +40°C temperature 30% - 75% relative humidity |
| Classification | Class l as per Annex VII of Directive 93/42/EEC with potential equalization |
| Dimensions (Dia x L) | Ø30x75mm |
| Weight | 70g |
| Lens Connection | C-mount |
| Cable length | 2.5 meters |
| Protection | IPX7 (Not on connectors) |
| Dimensions (WxDxH) | 120 x 120 x 35 mm |
| Weight | 0.8 kg |
| Line voltage | 100 – 240 VAC @ 50-60 Hz |
| Power consumption | 12W (max.) |
| Power tested acc. To | UL2601 – EN60601 – 1, IEC601 – 1 – 2 |
C1150.00/01 1CCD Digital color video camera 1150 with adapter lens (PAL/NTSC).
C1150.02/03 1CCD Digital color video camera 1150 without adapter lens. ( PAL/NTSC)
